Back to roof wingRoof Wing
Installation support
Roof Wing
Clearance Guide
About 30 min8 stepsC5 coupe
Not all C5 glass hatches are aligned the same. If your roof wing touches the fixed roof pillar as the hatch opens, stop before forcing it. Start with the two placement checks. Adjust the hinge only if those checks do not solve the contact.
Step 1 of 8Quick check
01
Center the wing from left to right
- Set the roof wing in place without pressing the tape down.

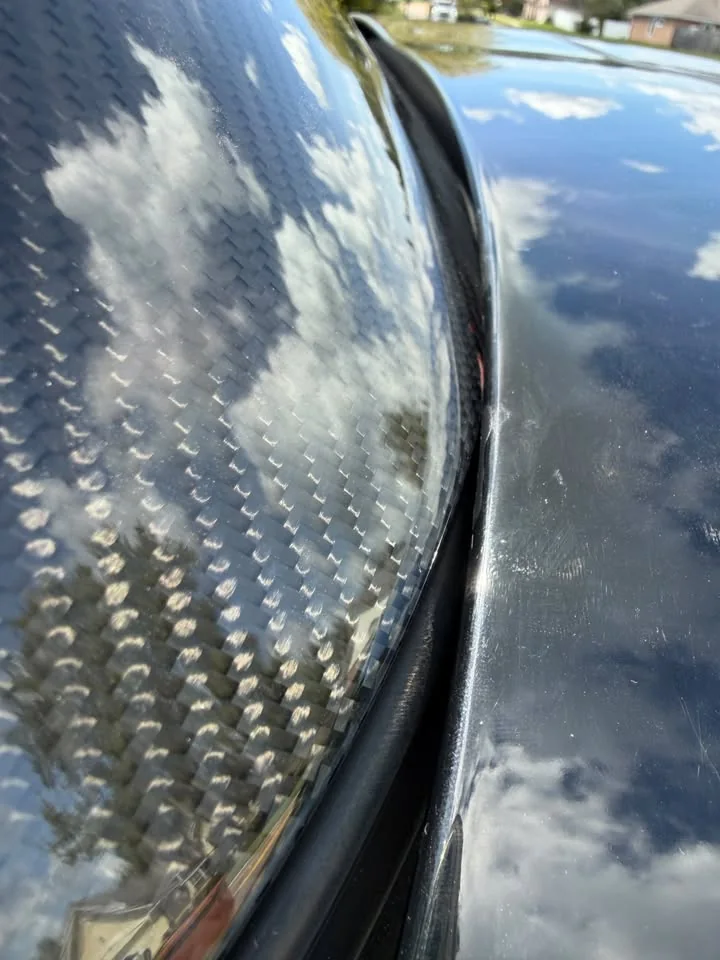

- Compare both ends. If the wing sits too far toward one side, that end can contact the curved apex of the fixed roof pillar first.
- Move the wing toward the opposite side until both ends appear even.
